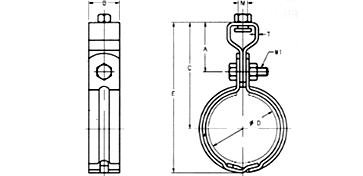

Nominal
Pipe
Size |
B |
T |
M |
M1 |
D |
A |
C |
E |
Maximun
recommended
load, kg |
| 15 |
25 |
1.8 |
M10 (3/8") |
M6 (1/4") |
16 |
30 |
50 |
68 |
280 |
| 20 |
25 |
1.8 |
M10 (3/8") |
M6 (1/4") |
23 |
30 |
53 |
73 |
280 |
| 25 |
25 |
1.8 |
M10 (3/8") |
M6 (1/4") |
29 |
30 |
56 |
80 |
280 |
| 32 |
25 |
1.8 |
M10 (3/8") |
M6 (1/4") |
35 |
30 |
61 |
88 |
280 |
| 40 |
25 |
1.8 |
M10 (3/8") |
M6 (1/4") |
42 |
30 |
64 |
92 |
280 |
| 50 |
30 |
2.3 |
M10 (3/8") |
M6 (1/4") |
54 |
37 |
80 |
115 |
280 |
| 65 |
30 |
2.3 |
M10 (3/8") |
M6 (1/4") |
67 |
37 |
90 |
132 |
450 |
| 80 |
40 |
2.6 |
M10 (3/8") |
M6 (1/4") |
80 |
48 |
110 |
157 |
450 |
| 100 |
40 |
2.6 |
M10 (3/8") |
M6 (1/4") |
105 |
48 |
125 |
185 |
450 |
| 125 |
40 |
2.6 |
M12 (1/2") |
M10 (3/8") |
131 |
60 |
150 |
225 |
450 |
| 150 |
50 |
3.2 |
M12 (1/2") |
M10 (3/8") |
156 |
70 |
185 |
271 |
450 |
| 200 |
50 |
3.2 |
M12 (1/2") |
M10 (3/8") |
208 |
70 |
215 |
324 |
900 |
| 250 |
50 |
4.5 |
M12 (1/2") |
M12 (1/2") |
259 |
70 |
230 |
375 |
1350 |
|
