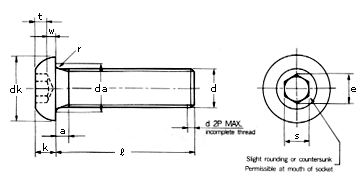

Hexagon Socket Button Head Screws |
Unit : mm |
|
| Thread
diameter d |
M3 |
M4 |
M5 |
M6 |
M8 |
÷
M10 |
÷
M12 |
÷
M16 |
| Thread
Pitch |
|
0.5 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
| a
1) |
max. |
1 |
1.4 |
1.6 |
2 |
2.5 |
3 |
3.5 |
4 |
| da |
max. |
3.6 |
4.7 |
5.7 |
6.8 |
9.2 |
11.2 |
13.7 |
17.7 |
| dk |
max. |
5.7 |
7.6 |
9.5 |
10.5 |
14 |
17.5 |
21 |
28 |
| min. |
5.4 |
7.24 |
9.14 |
10.07 |
13.57 |
17.07 |
20.48 |
27.48 |
| e |
min. |
2.3 |
2.87 |
3.44 |
4.58 |
5.72 |
6.86 |
9.15 |
11.43 |
| k |
max. |
1.65 |
2.2 |
2.75 |
3.3 |
4.4 |
5.5 |
6.6 |
8.8 |
| min. |
1.4 |
1.95 |
2.5 |
3 |
4.1 |
5.2 |
6.24 |
8.44 |
| r |
min. |
0.1 |
0.2 |
0.2 |
0.25 |
0.4 |
0.4 |
0.6 |
0.6 |
| s |
nom. |
2 |
2.5 |
3 |
4 |
5 |
6 |
8 |
10 |
| max. |
2.045 |
2.56 |
3.08 |
4.095 |
5.095 |
6.095 |
8.115 |
10.115 |
| min. |
2.02 |
2.52 |
3.02 |
4.02 |
5.02 |
6.02 |
8.025 |
10.025 |
| t |
min. |
1.04 |
1.3 |
1.56 |
2.08 |
2.6 |
3.12 |
4.16 |
5.20 |
| w |
min. |
0.2 |
0.3 |
0.38 |
0 |
1.05 |
1.45 |
1.63 |
2.25 |
|
|
